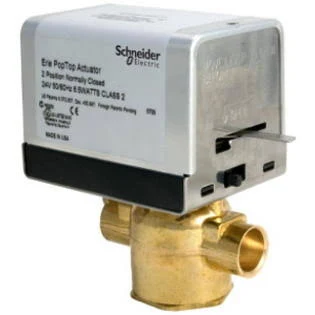

Erie VT2417G13A02A 1-Inch Sweat 2-Way PopTop Zone Valve w/ End Switch (24V) IZC04_F8920

Product details:

Erie 1 General Purpose Sweat Zone Valve With 24V Actuator & End Switch VT2417G13A02A Erie's PopTop motorized hydronic valves provide convenient, reliable and easy installation for a variety of heating and cooling applications. Installation is a snap with easy, one-handed removal or engagement of the actuator to the valve body. Push the button and lift. It's that simple. Made in the USA. Actuator can be easily attached after the valve body has been installed into the system - Mounts quickly and easily without the need of linkages or calibration - Temperature Range: 32 to 200 F18 leads for actuators with end switches - Voltage 24 Vac @ 50/60 Hz, 110 Vac @ 50 Hz and 120 Vac @ 60 Hz, 230 Vac @ 50 Hz, 240 Vac @ 60 Hz, 208 Vac @ 50/60 Hz., 277 Vac @50/60 Hz. - Up to 75 psi pressure differential close-off - Power Requirements 6.5 watts, 7.5 Va. - Control Signal - on/off, 2 position, spring return - Materials - stainless steel base plate, aluminum cover - Seat Leakage: Zero Leakage (100% Bubble-Tight Close-Off)Body Materials: Body: Forged Brass - Stem: Nickel Plated - Seat: Brass - Paddle: Buna N
